OVERVIEW

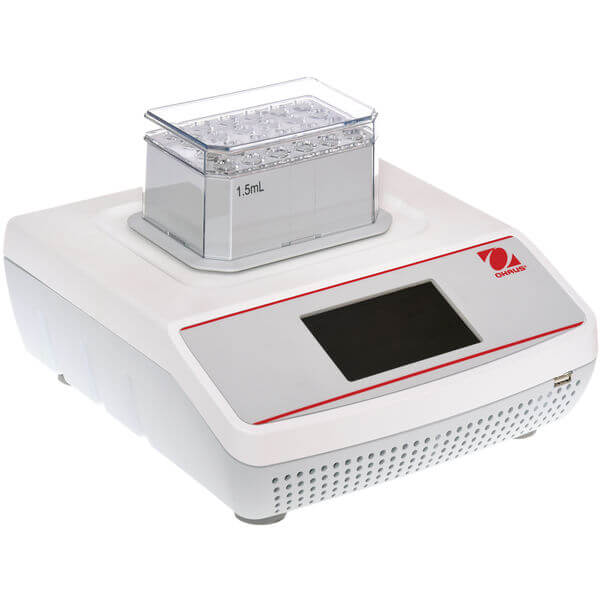

OHAUS Thermal Shakers are designed for heating and cooling applications that require consistent and precise high-speed shaking with dependable temperature control from 17°C below ambient to 100°C. Temperature can be user-calibrated when precision is required. Customize applications with interchangeable blocks to accommodate tubes & microplates. Intuitive touchscreen allows the user to view all steps of the program while monitoring the progress.
SPECIFICATIONS
Motion Orbital, 3 mm
Capacity 1 Thermal block
Temp. Range 17°C below Ambient – 100°C
Speed Range 300 rpm – 3000 rpm
Blocks Included 24 X 1.5 mL tube block, rack and cover
Calibration Temperature calibration
Communication USB
Control Touch
Cooling rate Above ambient 2-3°C/min
Dimensions 10.6 in x 5.4 in x 10.03 in (269 mm x 137 mm x 262 mm) (LxHxW)
Drive System Brushless DC Motor
Heating Rate 5°C/min
Net Weight 10.8 lb (4.9 kg)
Orbit 0.1 in (3 mm)
Power 230V, 0.9A, 50/60Hz
Power Consumption 210 W
Safety Certification CE;  TUV
Speed Accuracy ±2%
Speed Range 300 rpm – 3000 rpm
Temperature accuracy (±) +/- 0.5°C between 20°C and 45°C;  +/-2°C below 20°C and 45°C
Timer 1 second – 99 hours, 59 minutes
Working Environment 41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
